Product Description

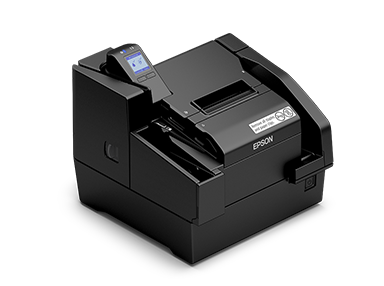

Epson TM-S9000II-NW 225DPM Network Multifunction Device without MSR

The full-featured TM-S9000II-NW adds powerful productivity to your financial institution’s operation. Featuring check printing and scanning, 2-sided ID card scanning and integrated thermal receipt printing, this versatile multifunction device includes a 100-check document feeder and bright LCD display for quick, easy access to device and maintenance status. The TM-S9000II-NW has the fastest scan speeds in its class, at up to 225 DPM. Designed for ease of use, it comes with both Ethernet and high-speed USB 2.0 connectivity to help ensure futureproofing and flexibility during deployment. In addition, you can connect directly to your institution’s network and process checks with the latest networked software applications. Interface with existing APIs and use the included Web API with thin- or zero-client deployments without the need for a PC. With the Epson Device Admin app, you can remotely monitor and manage your device fleet from the convenience of your laptop or smart device. The TM-S9000II-NW provides standalone backup storage in the event of a network disruption, to help ensure seamless operation. It comes with an industry-leading 2-year limited warranty, with options to purchase Epson Preferred Plus Extended Service Plans for up to a total of 5 years of continuous coverage. We’ve got you covered with our world-class service and support to give you peace of mind.

Specifications

Part Number	A41CK43031
Configuration	1 pocket, Without MSR
Scan Speed (USB)	225 DPM (documents per minute)
Scan Speed (Network)	Up to 200 DPM
Document Feeder Capacity	100 checks
Connectivity	Ethernet, USB 2.0
Warranty	2-year limited warranty (extended plans up to 5 years available)

Printing Specifications

Integrated Thermal Printer	Direct thermal
Line Inkjet Printer	Line ink, 360 nozzles
Print Resolution (Thermal)	180 x 180 dpi
Print Resolution (Inkjet)	180 x 180 dpi
Print Speed	Up to 300 mm/sec (11.8″/sec)
Head Life	6 billion shots/nozzle
Thermal Printer Fonts	Font A (default): 12 x 24 / Font B: 9 x 17
Inkjet Printer Fonts	Font A (default): 12 x 24 / Font B: 9 x 17

Scanner Specifications

Throughput	Up to 200 DPM Networked, up to 225 DPM USB
Speed	Paper feeding: up to 1,000 mm/sec
Resolution	100 dpi, 120 dpi, 200 dpi, 240 dpi interpolated, 300 dpi optical
Scan Area	106 x 235 mm
Mode	24-bit color, 8-bit grayscale, bi-tonal
Method	CIS (Contact Image Sensor)
Data Transmission Format	TIFF, JPEG, JTIFF, BMP (Windows bitmap), Raster (Raw)
Data Compression	CCITT Group 4, JPEG
Capacity	Auto-input feeder of 100 items; exit pocket of 100 items; optional second pocket of 50 items
Rated Life	2 million items
MCBF	4,940,000 cycles
MTBF	180,000 hours
OCR	OCR-A, OCR-B and 1D Barcode
MICR	E13B and CMC7

ID Card Scanner

Throughput	1 at a time; multiple feeding is not available
Speed	Card feeding: 118 mm/sec (600 dpi color)
Area	ISO/IEC 7810 card
Resolution	200 dpi interpolated, 300 dpi, 600 dpi optical
Method	CIS (Contact Image Sensor)
Mode	24-bit Color, 8-bit Grayscale
Capacity	1 ID

General Specifications

Single-Pocket Size	206 x 263.8 x 250 mm (8.11″ x 10.39″ x 9.84″)
Weight (One-pocket)	5.3 kg (11.68 lb)
Weight (Two-pocket)	5.7 kg (12.57 lb)
D.K.D.	2 drawers
Power Supply	PS-180, 24 VDC; one power supply for scanner and printer
Media Width	79.5 ± 0.5 mm (3.13″ ± 0.02″)
Roll Paper Diameter	83 mm (3.27″) maximum
Case Color	Epson Black
Country of Origin	China
Eco Features	WEEE, RoHS compliant
Operating Systems	Windows 10, Windows 8/8.1, Windows 7, Windows Vista, Windows XP, Windows XP Embedded, Windows Embedded POS Ready, Windows Embedded Standard 7, Windows Embedded POS Ready 7
Server Systems	Windows Server 2008/2008R2, Windows Server 2012/2012R2, Windows Server 2016

Reliability

Thermal Printer MTBF	360,000 hours
Thermal Printer MCBF	96,000,000 lines
Auto Cutter	2 million cuts
Line Inkjet Printer MTBF	180,000 hours

Key Features

• Network-enabled multifunction device — includes Web API for use with thin- or zero-client deployments, no PC required
• Easy to use — bright LCD display for a simplified user experience
• Fastest scan speeds in its class — USB scanning speed of up to 225 dpm and network scanning speed of up to 200 dpm
• Integrated thermal receipt printing — built-in thermal printer for fast receipt printing
• Two-sided ID scanning — easily capture color ID cards
• World-class service and support — 2-year limited warranty; Epson Preferred Plus Extended Service Plans available for up to 5 total years of continuous coverage
• Versatile connectivity — high-speed USB 2.0 and Ethernet options for futureproofing and deployment flexibility
• Remote monitoring capability via Web interface — manage and monitor your device fleet from your laptop or smart device with Epson Device Admin
• Device memory for data storage — back up your information in the event of a network disruption
• API compatibility — connect with existing APIs for simplified integration

Eco Features

• RoHS compliant
• Recyclable product
• Epson America, Inc. is a SmartWay Transport Partner

What’s In The Box

• TM-S9000II-NW Network Multifunction Teller Device
• Thermal roll paper (starter roll for operation check)
• USB cable
• Dedicated ink cartridge [SJIC18(K)] x 2
• AC cable
• AC adapter [PS-180 (Model: M159B)]
• Setup Guide
• Cut-sheet paper (starter cut-sheet paper for operation check)
